Description

HD 2003.1 : 3-AXIS  ULTRASONIC  ANEMOMETER

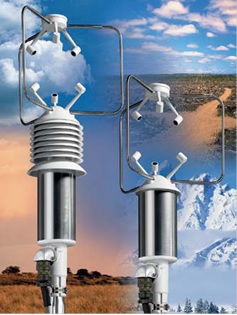

HD2003.1 Three Axis Ultrasonic Anemometer measure the speed and direction of wind, the U-V-W Cartesian components of speed, sound speed and sonic temperature.

The HD2003.1 main features are:-

• Determination of the anemometric quantities represented in diverse   measurement units: wind speed and direction, U-V-W Cartesian components of speed, sound speed, sonic temperature.

• 5 analogue voltage or current outputs, with different measuring ranges.

• RS232 and Multidrop RS485 Serial Communication interfaces.

• Configurable output rate of digital output data string.

• Configurable average periods 1÷60sec and 1÷60min. for all output Quantities.

• Algorithmic raw date processing and validation, assuring ± 1% precision to anemometric quantities.

• Digital high frequency data acquisition mode with 50Hz data output.

• Self-diagnosis with error checking and report.

• Reliability and precision on whole measuring range, no additional calibration required.

• Flexible, easy-to use demo software, configurable according to the user’s needs through Computer interface.

• User interface for ‘Setup’ management and software upgrade through RS232 or RS485.

• Automatic alignment to the magnetic North through built in compass.

• No moving part, with reduced maintenance and service costs.

• Rugged and reliable structure, suitable for continuous operation even in severe environmental conditions.

• Low power consumption.



Typical applications:-

• Meteorology
• Aviation and Navigation
• Tunnels, Highways
• Climatology
• Sport and winter stations
• Safety in yards
• Industrial buildings



                                                      Technical specifications

Output quantities : Anemometric parameters  Wind speed and direction, Sound Speed, Sonic Temperature, U-V-W Components

Heading : Compass with magnetic Azimuth

Moving Averages : 1 - 60 sec./ 1 - 60 min.

Output rate : 1 - 3600 sec. or 1/50 sec. (RS232 or RS485)

Baud Rate : 9600  - 115200 bit/sec.



Wind Speed

Measuring unit : m/s, cm/s, km/h, knots, mph

Range : 0 - 65 m/s (234 km/h)

Resolution : 0.01 m/s

Accuracy : ± 1% of reading



Wind Direction

Range Azimuth : 0 - 360° Elevation: ± 60°

Resolution : 0. 1°

Accuracy : ± 1°



Sound speed

Range : 300 - 380 m/s

Resolution : 0.01 m/s

Accuracy : ± 1% of reading



Sonic Temperature

Range : -40 + 60°C

Resolution : 0.1 °C

Accuracy : ± 1°C



Compass

Range : 0 ÷ 360°

Resolution : 0.1 °

Accuracy : ± 1°



Digital Outputs

Communications : RS-232 full duplex, Multidrop RS-485 half duplex

Baud Rate : 9600  - 115200 bit/sec.

Output Rate : Normal functioning mode: 1 - 3600 sec , Digital high frequency : 1/50 sec



Analog Outputs

Number : 5, selectable between all available output quantities

Range : 0 - 20mA, 4 -20mA, 0 - 1V, 0 - 5V, 1 - 5V, 0 -10V

Resolution : 14 bit max



Power supply

Range : 12 - 30 VDC

Power : <2W (typically 110mA @ 15Vdc)



Environmental Conditions.

Temperature Range : - 40  to +60 °C

EMC : CE Regulations

Humidity :  0%  to 100% RH
