Description

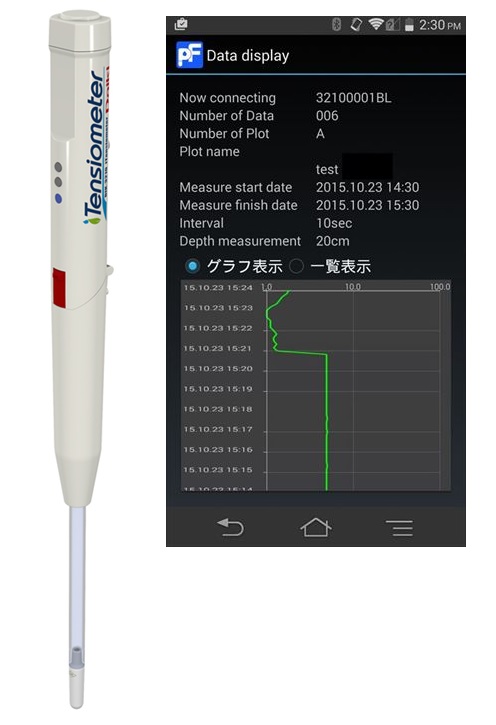

DIK- 3210 Soil Tensiometer

Main features

Built-in data logger and battery, integrated style!
With Bluetooth communication! Free from a complex wiring!
Easily obtaining of measurement data and setting of measurement condition by display unit.
By the touch panel operation, anyone easily can be  operated.

                                        Specifications

Power source : size C battery 2 pieces (Approx. 1 year life time in 1 hour measurement intervals)

Dimension : φ60mm x 600mm (Except Porous cup)

Porous cup size : φ18mm x L80mm (Ceramic cup is H60mm)

Weight : Approx. 600g

Measurement pressure range :          0 ~ -100kPa to be specified

sensitive part length : 10 ~ 100cm by a 10cm unit

Memory capacity : 10,000 measurements

Power source :            Lithium-ion battery (Rechargeable battery)

Dimension : 138mm x 67mm x 10.9mm

Weight : Approx. 260g

Communication method : Bluetooth

File format : CSV
