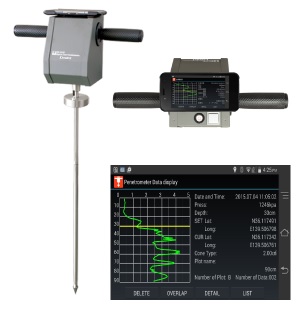

DIK-5532 : Digital Cone Penetrometer

DIK-5532 Digital Cone Penetrometer measures a soil compaction in situ easily. It can be used to measure to depth 0 to 90 cm (Interval each cm), Built-in GPS Display can measure and save data of maximum 1000 locations. This hand held instrument Soil Cone Penetrometer is the world’s best handheld equipment for measurement soil compaction.

Features:-

• Built-in datalogger and battery, Integrated style
• Real-time measurement Graph with digital display
• Measure depth 0 to 90 cm (Interval each cm)
• Easily obtaining of measurement data and setting of measurement condition by display unit
• Easily checking measurement data by graph
• This product can be measured at a constant speed by displaying an indication of penetration rate
• Bluetooth free from complex wiring

Specifications

Maximum Insertion Depth Range : 90 cm

Measuring Interval : Each Centimeter  (0 to 90 cm )

Resolution : 1 kPa

Range of 2 cm2 cone : 179 kPa to 4903 kPa (1.8 Kg to 50 Kg)

Communication method : Bluetooth (Wireless)

Data Storage Capacity : 1000 locations

Data Output File Format : CVS

Data Download : USB cable

Cone Penetrometer Dimensions : 345 (W) X 144 (D) X 164 (H) mm

Cone Penetrometer Power Source : 2 C size alkaline batteries

Cone (SS) base Area : 2 cm2

Cone (SS) Top Angle : 30 Degree

Display : Real-time measurement Graph with digital display

Display Unit Dimensions :  144 (W) x 72 (D) x 7.8 (H) mm

Display Unit Power source : 2500 mAh (Rechargeable battery)

Power Backup (Display Unit) : 5 hours

GPS System : Inbuilt with measuring head

GPS Measurement System : WGS-84

Software : User friendly Pre-Installed Software

Internal Protection : Dust proof, Drip proof structure

Weight : Approx. 4 Kg
