Description

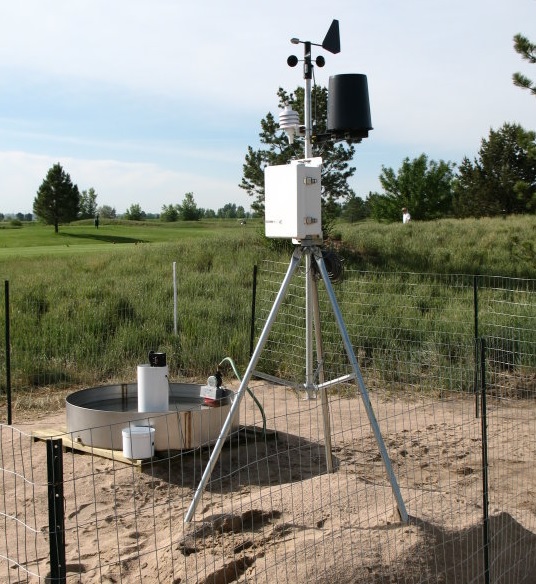

WS-NL32: Automatic Weather Station is a computer-based meteorological system designed as a “user friendly” solution for data storage and real-time monitoring of weather conditions. Our weather Station can be use following sensors & accessories:-

Sensors & Accessories:-

• Wind Speed

• Wind Direction Sensor

• Air Temperature Sensor

• Relative Humidity  Sensor

• Solar Radiation Sensor

• Net Radiometer Sensor

• UV Radiation Sensor

• Snow Depth Sensor

• Albedometer Sensor

• Rain Gauge

• Soil Temperature Sensor

• Soil Moisture Sensor

• Barometric Pressure Sensor

• Leaf wetness Sensor

• Evaporation pan

• Data Logger

• Windows based Graphical Display Software

• Wireless Spectrum Radio System

• GSM/GPRS System

• Cables & Mounts

• Solar Panel

• Tripod & Mast

• Lighting protection kit

The Graphical Display Software is a Windows software program for data logger applications. It communicates with 195-NL32 data loggers for monitoring and display of sensors and devices, Includes the graphical design and terminal software runtime interface in one package. There are no limits on the number of loggers or sensor data points you can set or use. The standard Windows interface and setup tools make it easy to design new screens with graphs and indicators for your application.

Data that has been stored downloaded and the historical trend graph charts can be analyzed for daily or monthly highs and lows.

Features include

• Real-time graphical software

• Powerful data presentation

• Supports real-time and stored archived data

• Scheduled automatic downloading

• Can display minimum, maximum, averages, graphs, time of

   min-max, etc.

• Can be customized for special applications

• All types of graphs, line, bar, area, 3-D

• Full color and font support

• Can easily be set-up and customized with a little typing and a Few clicks of the mouse.

• Runs on Windows 98/ME/XP/Windows/7&8

                                 Technical Specifications

Analog Inputs:-

Voltage input channels : 16 at 15-bit resolution

Voltage input ranges : 25mV, 50mV, 100mV, 250mV, 500mV, 1V, 2.5V, and 5V

Current input channels : 1 at 15-bits resolution

Current input ranges : 0.25uA, 10 uA, 40 uA, 100 uA, 1 mA

Temperature input channels : 15 at 15-bit resolution

Temperature input range : -50 °C to +60 °C with 10K ohm J- Type Thermistor

Wind speed (AC or DC pulsed) : 2 channels at 1400 Hz each

Wind direction : 2 channels at 10 bits resolution

Digital Inputs/Outputs: Alarm outputs 2 open collector high/low threshold outputs. 2A max.

Communications Ports:-

RS-232/422/485 ports : 10 software configurable multi-protocol ports

Bit rates : Up to 1Mbps RS-232, 10 Mbps RS-485/422

Modem port : RS-232 with RTS/CTS, switched modem power

USB port : One B- type USB port

Memory port : One A-type USB port, 6GB capacity

SDI-12 port : One standard compliant port

Ethernet port : 10/100 Base TX

Environmental

Operating temperature range : -40 to +85°C

Storage temperature range:  -60 to +85°C

Humidity : 0 to 90% RH

Vibration : 10-500 Hz to 2 G

Power

Voltage range : 9-35 Vdc (40 Vdc absolute maximum)

Peak current : 80 mA at 12 Vdc (all ports active)

Nominal current : 45 mA at 12 Vdc

Sleep mode current : 75 uA at 12 Vdc

Battery life : >10 years for memory and clock

Input protection : Fused to 2A. Reverse polarity and over- voltage protection

Features

Calendar clock : Date, time, leap year, 2 time-of-day alarms.

On-board data memory : 8 MB standard
